Forming Fabric Cleaners

PCF Forming Fabric Cleaner for top or bottom position of the forming section, or both:

Features:

  • constructed of stainless steel AISI316

  • brackets in top position include cantilever construction

  • traversing nozzle block in stainless steel AISI316 over the full fabric width

  • cleaning unit with fixed needle jet nozzles, air pipe and silicon strip around the entire unit for mist free operation.

Advantages of the PCF Forming Fabric cleaner:

  • absolute equal cleaning performance over the entire fabric width

  • no nozzle overlap

  • no stripes in the forming fabric

  • fabric lifetime is increased, saving fabric costs

  • significantly reduced electricity and water consumption

  • reduced sheet breaks

  • 100% mist free operation

  • nozzle check during production is possible

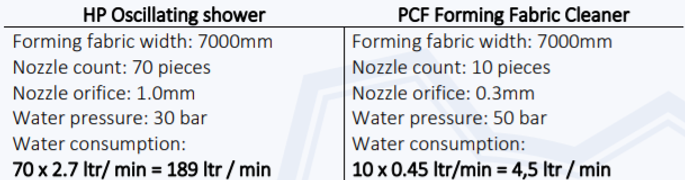

 The Forming Fabric Cleaner saves water compared to oscillating showers:


Total decreased water consumption:

189 ltr/min – 4.5 ltr/min = 184.5 ltr/min



Total decreased water consumption per year:

184.5 ltr/min x 60 min x 24 hours x 360 days = 95.645 m3 saved per year
